Scopes

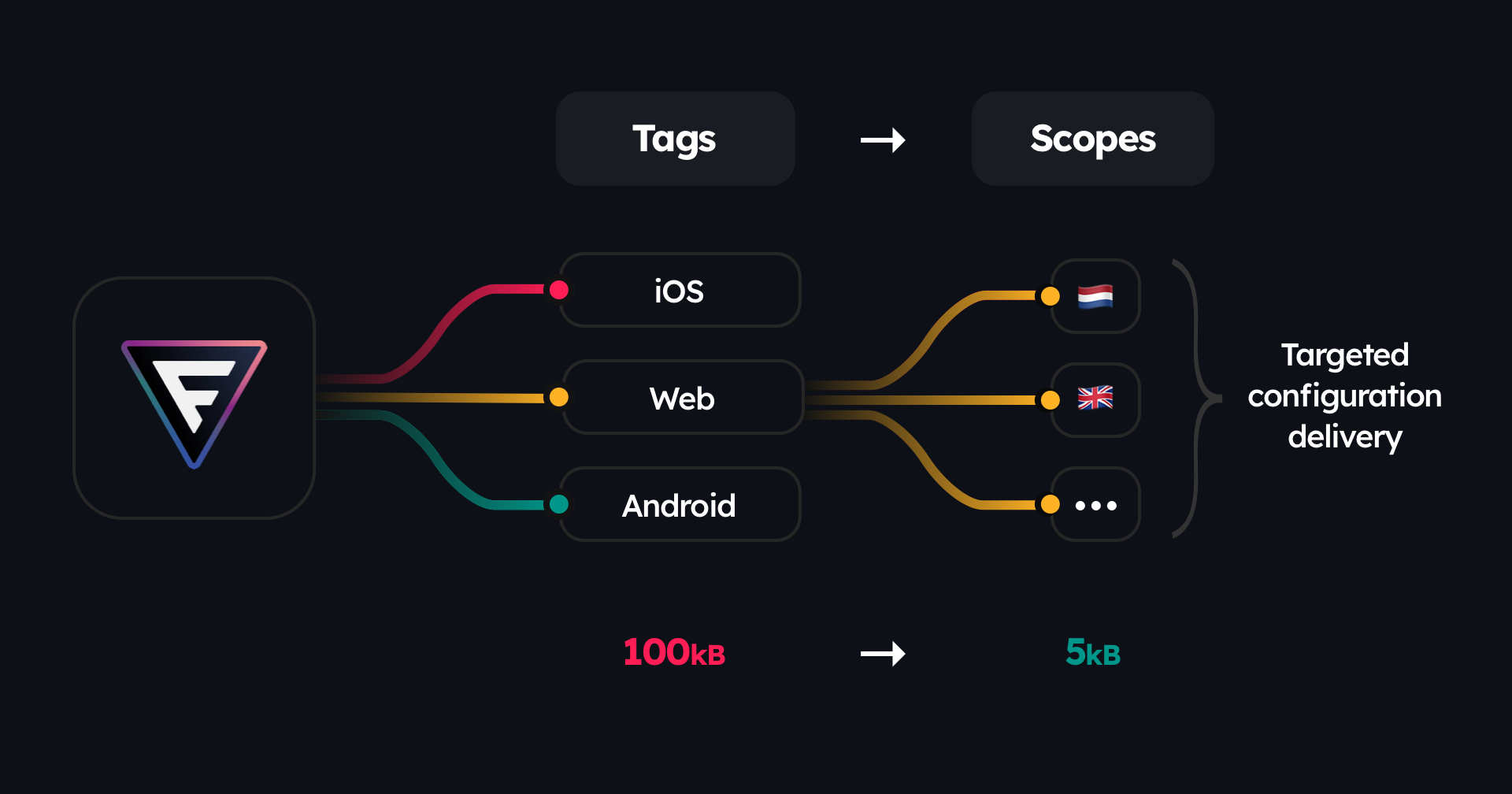

Scopes are a way to generate smaller and more optimized datafiles for your applications to achieve quicker downloads, with a reduced memory footprint, and faster local evaluations.

Challenges#

Featurevisor always supported:

• Tagging features
• Allowing creation of datafiles per each tag
• Enabling individual application(s) to load only the features they need

But that still meant the application(s) had to fetch all the rules belonging to those tagged features, even if some of those rules (and their corresponding segments) were not relevant for intended application and its users.

Example scenario#

Understanding segments#

Imagine we have three segments with each targeting a different device type like:

• web
• ios
• android

They each have a condition against the platform attribute, like:

description: Target web devices
conditions:
  - attribute: platform
    operator: equals
    value: web

Usage of segments in rules#

And we happen to have a single feature that targets all three device types but with different rollout percentage, like:

description: Show banner feature
tags:
  - web
  - ios
  - android
rules:
  production:
    - key: browsers-only
      segments: web
      percentage: 50
    - key: ios-only
      segments: ios
      percentage: 80
    - key: android-only
      segments: android
      percentage: 100

Building tagged datafiles#

When we build the datafiles, we will find them in the datafiles directory like this:

datafiles/
├── production/
│   └── featurevisor-tag-web.json
│   └── featurevisor-tag-ios.json
│   └── featurevisor-tag-android.json

Redundant rules#

Even though the datafiles are created per each tag, the features inside them still contain all three original rules targeting three different segments.

But our web application already knows that the user is in a web browser, so it didn't have to load the rules for ios and android segments targeting the platform attribute.

This is where scopes come in handy.

Defining scopes#

Scopes help you create more targeted datafiles that do not contain any redundant rules involving context that are already partially known beforehand.

To create a new scope, we will be updating our featurevisor.config.js file to include the new scope:

module.exports = {
  environments: [
    "production",
  ],
  tags: [
    "web",
    "ios",
    "android",
  ],
  scopes: [
    // we are letting Featurevisor know to
    // create a new scoped datafile
    // by picking features tagged with `web`
    // and removing redundant rules that do not matter
    // after applying the partially known context `{ platform: "web" }`
    {
      name: "browsers",
      tag: "web",
      context: { platform: "web" },
    },
  ],
}

What's happening above is, we are letting Featurevisor know to:

• create a new scoped datafile (next to existing tagged ones)
• by picking features tagged with web
• and removing redundant rules and segments from them
• after applying the partially known context { platform: "web" }

Complex scenarios#

While above scenario is quite simple, scopes can also be created for more complex scenarios with larger contexts targeting multiple attributes.

Imagine creating a scope for:

• web users
• in the Netherlands
• who are on a premium subscription plan

The partially known context could be expressed like this below:

const context = {
  platform: "web",
  country: "nl",
  subscription: "premium",
}

We can then make use of this partially known context early at the scope configuration level like this:

module.exports = {
  // ...
  scopes: [
    {
      name: "browsers-nl-premium",
      tag: "web",
      context: {
        platform: "web",
        country: "nl",
        subscription: "premium"
      },
    },
  ],
}

Build scoped datafiles#

Run the same build command as usual:

$ npx featurevisor build

You will now find the new scoped datafile in the datafiles directory:

datafiles/
├── production/
│   └── featurevisor-scope-browsers.json
│   └── featurevisor-tag-web.json
│   └── featurevisor-tag-ios.json
│   └── featurevisor-tag-android.json

Notice the new scoped datafile featurevisor-scope-browsers.json.

Unlike the tagged datafile featurevisor-tag-web.json, the scoped datafile does not contain the rules for the ios and android segments anymore.

This is because the scoped datafile is created after applying the partially known context to all the relevant features and segments, and removes anything that are not needed any more.

Consuming scoped datafiles#

From your application perspective, nothing changes.

Consume the new scoped datafile just like how you would a tagged one:

import { createInstance } from '@featurevisor/sdk'
const datafileUrl = 'https://cdn.yoursite.com/production/featurevisor-scope-browsers.json'
const datafileContent = await fetch(datafileUrl).then((res) => res.json())
const f = createInstance({
  datafile: datafileContent,
})

Testing scopes#

Because scopes produce separate datafiles, it is important that we have the ability to test our feature assertions against the scoped datafiles for improved confidence level.

When defining our test specs for features, we can optionally opt to test with scopes by passing the scope property to individual assertions:

feature: showBanner
assertions:
  ##
  # Testing without scopes
  #
  - at: 10
    environment: production
    context:
      platform: web
    expectedToBeEnabled: true
  ##
  # Testing with scopes
  #
  - scope: browsers # the name of the scope to test against
    at: 10
    context: {} # no additional context is needed to be passed
    expectedToBeEnabled: true

Running tests with scopes#

Because scoped datafiles are separate from tagged datafiles and require additional build step, we need to pass the --with-scopes option when testing:

$ npx featurevisor test --with-scopes

If we do not pass the option --with-scopes, the tests will still run and succeed.

But the scope's context will be fed to the evaluation context to imitate the behavior of testing with scopes, without actually building the scoped datafiles in memory.

It is opt-in only for improved confidence level.

Advanced scopes#

Picking features in scopes can go beyond specifying a single tag alone.

Single tag#

To include features of a single tag:

module.exports = {
  // ...
  scopes: [
    {
      name: 'browsers',
      tag: 'web',
      context: { platform: 'web' },
    },
  ],
}

Multiple tags#

To include features belonging to multiple tags together (like an AND condition):

module.exports = {
  // ...
  scopes: [
    {
      name: 'mobile',
      tags: [
        'ios',
        'android',
      ],
      context: {},
    },
  ],
}

It is alright for scopes to have an empty context, if we don't want any further optimizations.

Conditional tags#

To include features that matches any of the tags (like an OR condition):

module.exports = {
  // ...
  scopes: [
    {
      name: 'paid-users',
      tags: {
        or: [
          'ios',
          'android',
        ],
      },
      context: {},
    },
  ],
}

Similar to or, and can be used for picking features in a scope having multiple tags together.

All features#

If we wish to include all the features from our Featurevisor project, we can skip mentioning the tag or tags property altogether:

module.exports = {
  // ...
  scopes: [
    {
      name: 'ios',
      context: { platform: 'ios' },
    },
  ],
}

Comparison#

To avoid confusing scopes with some other terms used in Featurevisor, it's recommended to learn more about them in depth:

• Environments: different sets of rules per feature, like against staging or production
• Tags: allows tagging individual features, which end up in tagged datafiles
• Namespaces: purely for hierarchical organization of features, which acts as prefixes of feature keys.

Scopes are used to create smaller datafiles out of bigger (tagged) datafiles.

Benefits#

Scopes are perfect for:

• Multi-platform products (Web, iOS, Android, etc)
• Global products with country-specific features
• SaaS products with tiered subscriptions
• Enterprise products with role-based access
• Any product where context is partially known early (device type, user tier, region, etc)

They help generate more targeted and optimized datafiles that are significantly smaller in size, reducing the amount of data that needs to be:

• Downloaded: saving bandwidth costs
• Kept in memory: improving memory footprint, and
• Processed: avoiding unnecessary computation when evaluating features

All of it resulting in a much faster performance in your applications affecting your users positively.
